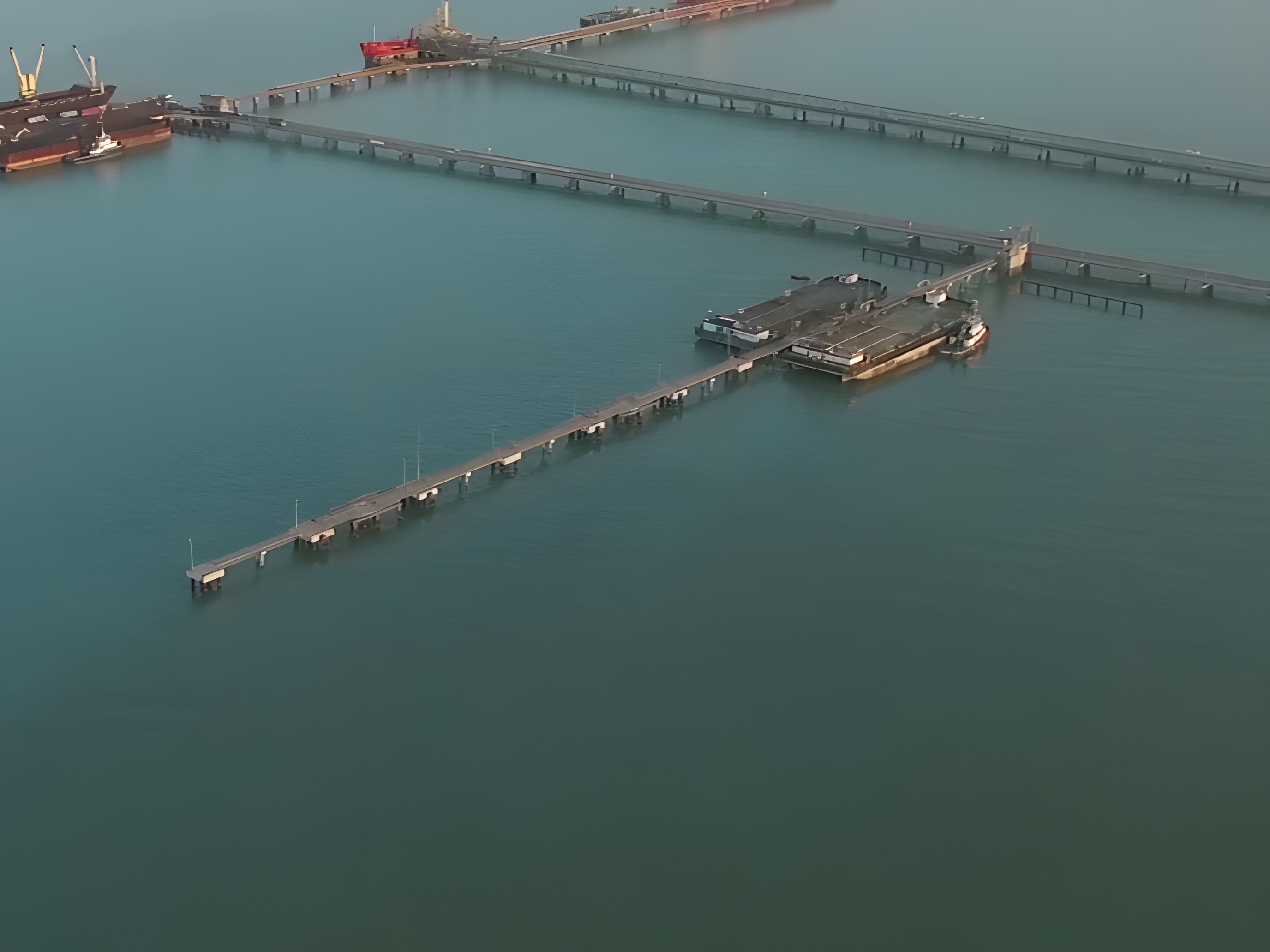

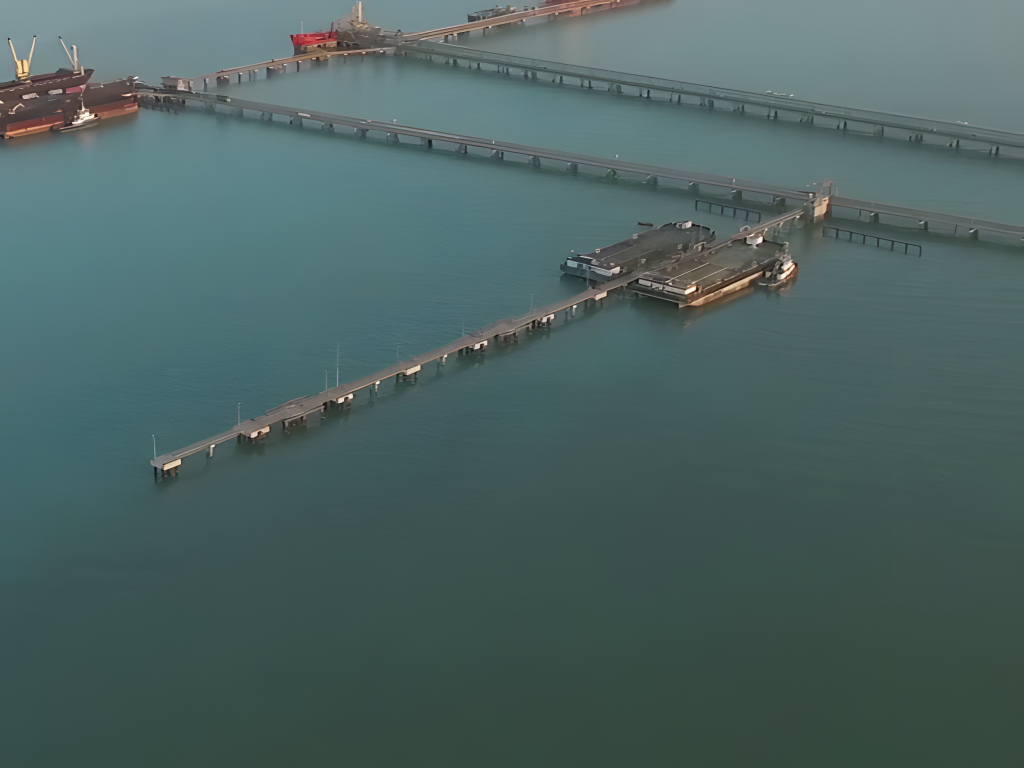

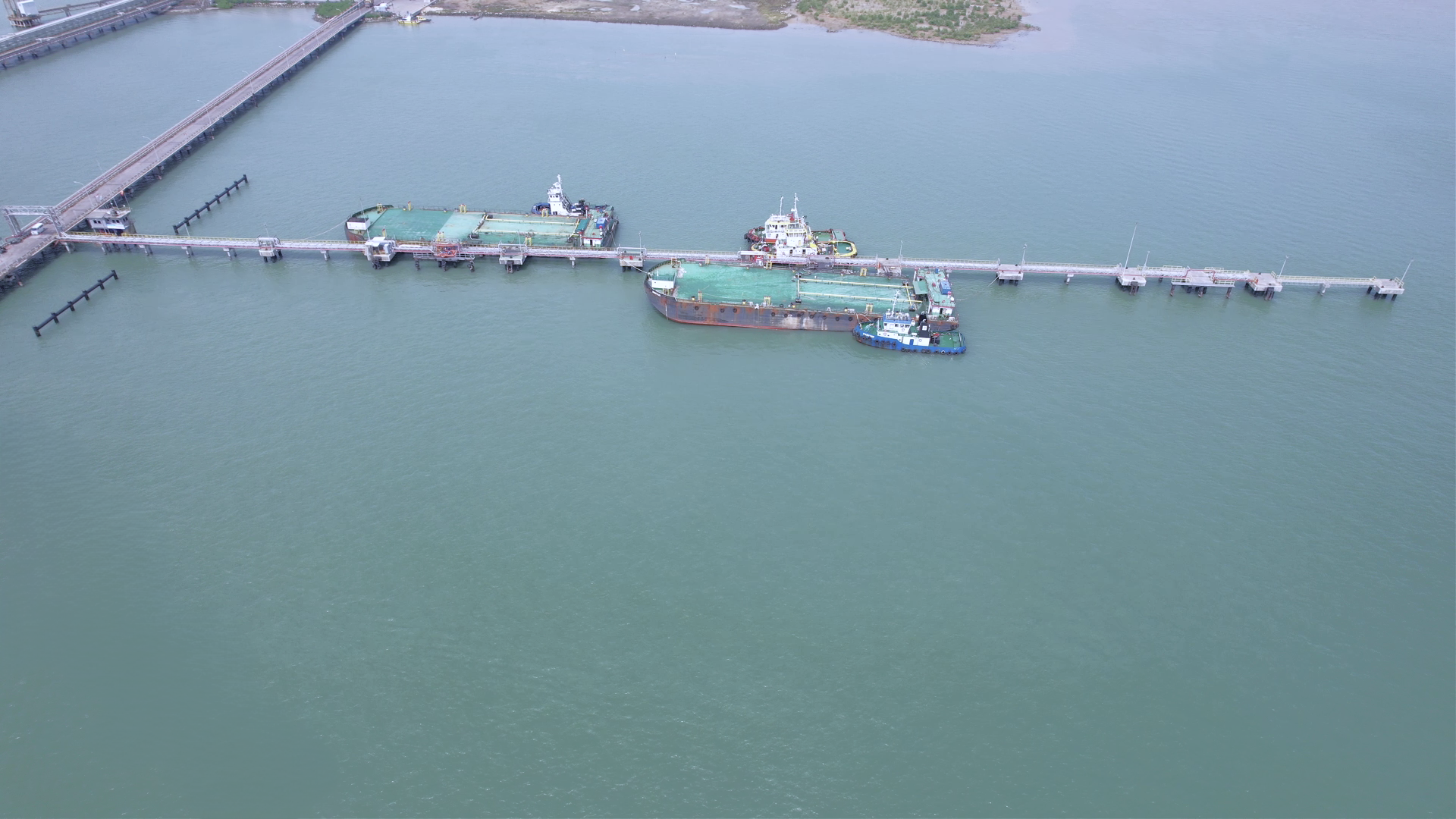

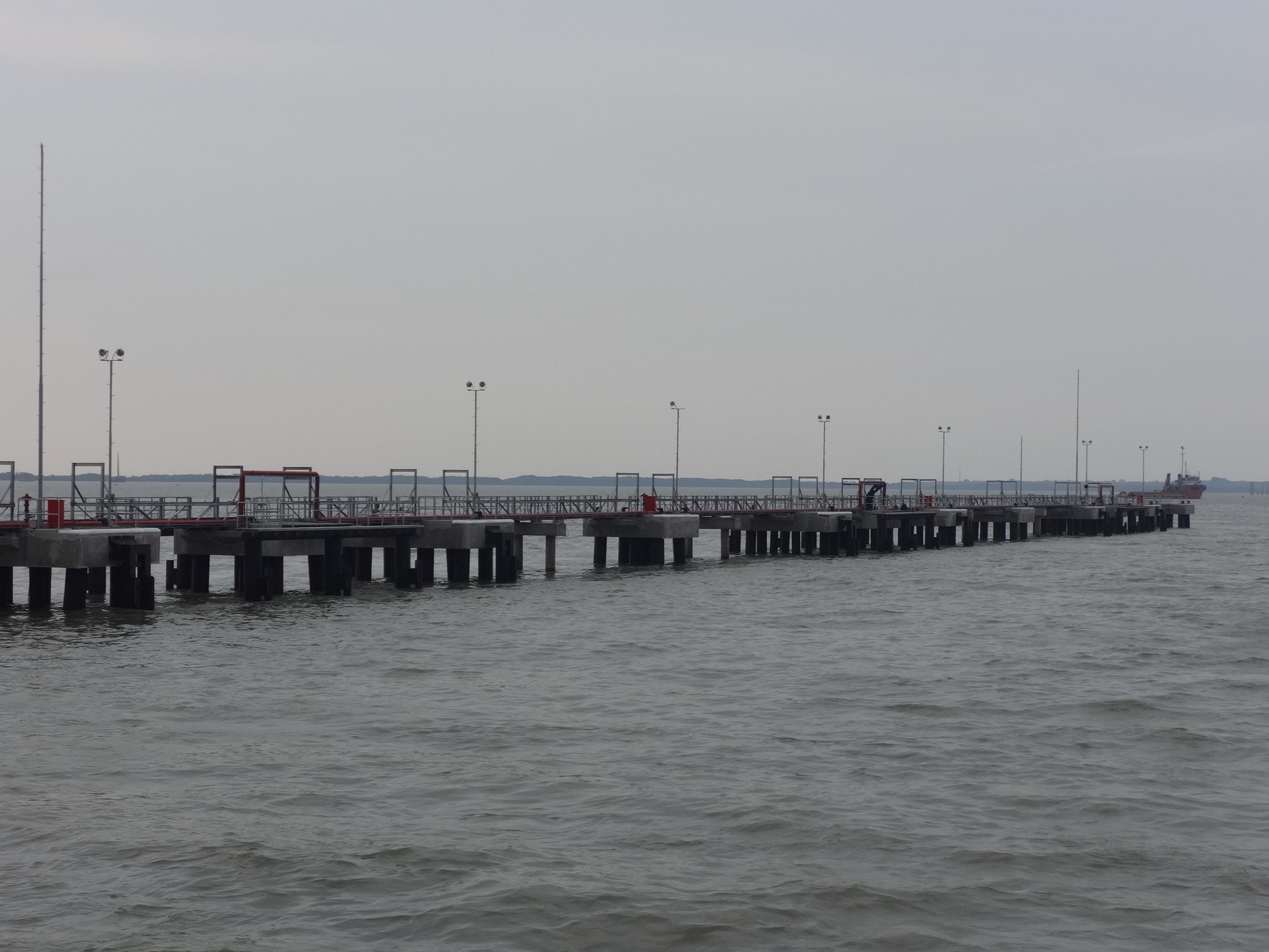

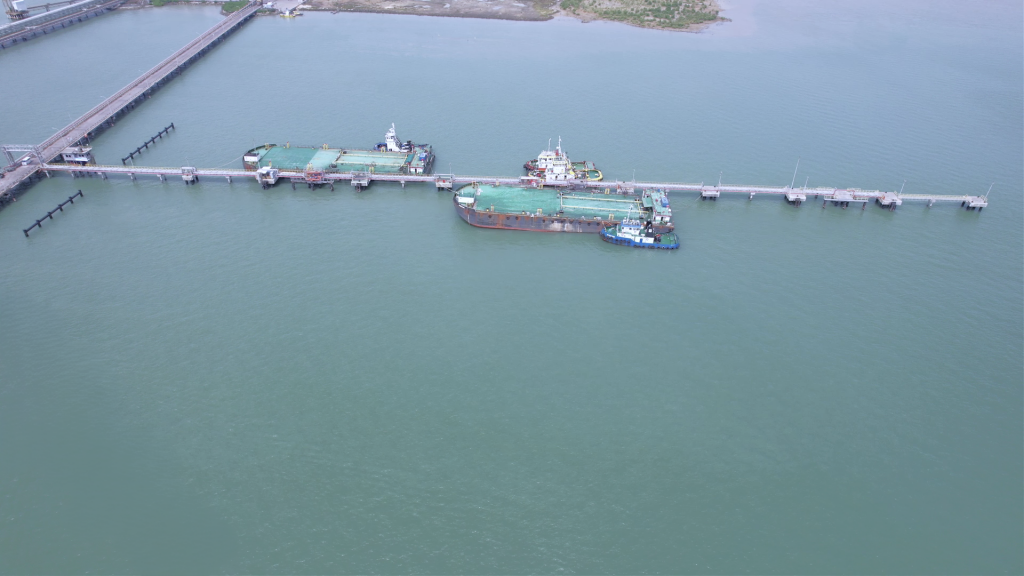

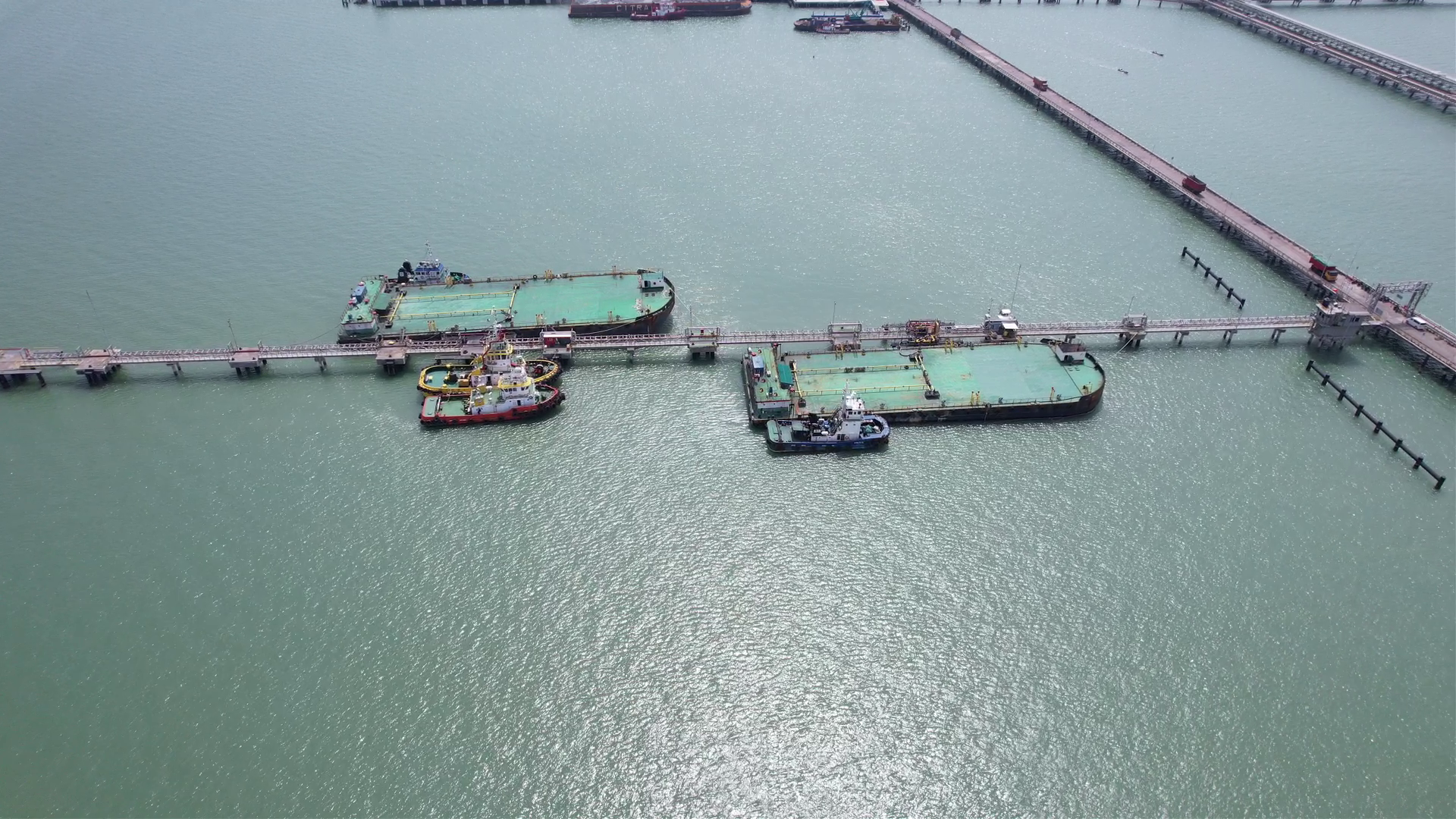

JETTY 5

General Specification

6 (Six) Berth At Same Time

500 DWT to 5,000 DWT Capacity

Loa 54 M to 100 M

DRAFT -8 mLwS

24 Hours Operation Time

Complete with Piperack HXW 1.2 x 1.5 m - 2 Layer

Platform

Elevation ± 5 MLWS

Size 6 x 6 Meter

3 platform (Platform 1, Platform 2, Platform 3)

Berthing Dolphine

Size 6 x 8 Meter

Bollard Capacity 2 x 50 Ton

BD 1 ~ BD 6

Mooring Dophin

Size 4 x 6 Meter (MD 1)

Size 6 x 6 Meter (Other)

Bollard 2 x 50 Ton (MD 1)

Bollard 4 x 50 Ton (Other)

Mooring Dolphin Detail
